H05V2-U / H07V2-U/R

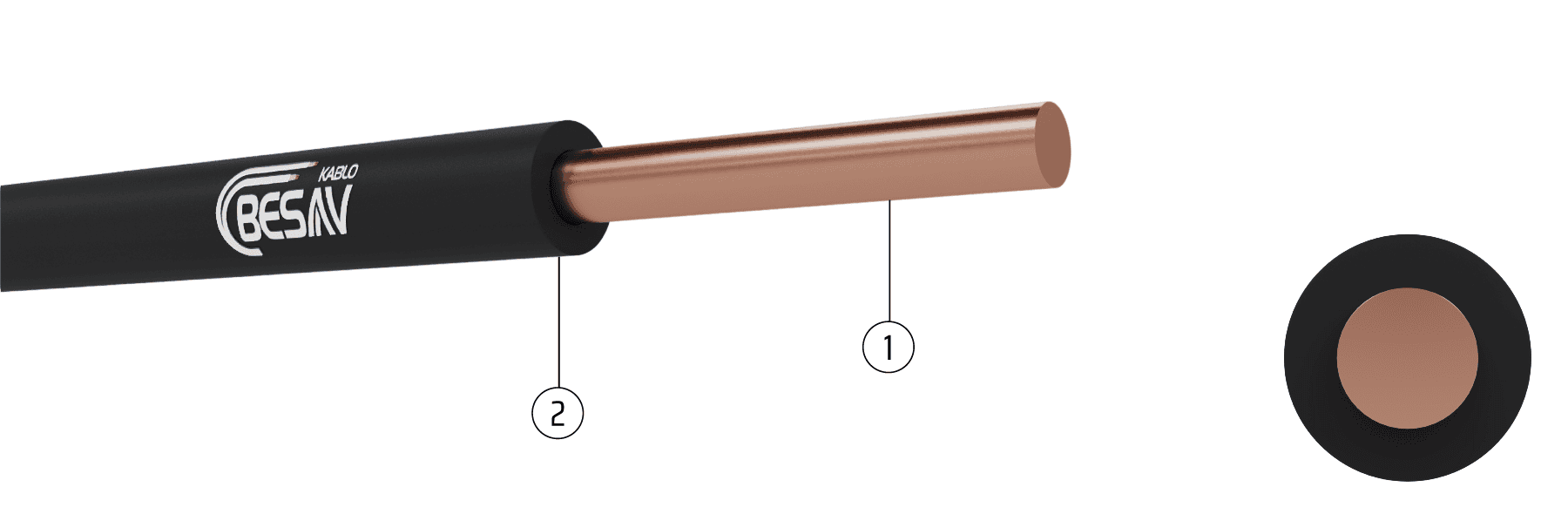

Construction

Conductor: Single-Stranded Copper

Isolate: PVC Insulation

Application Areas

It is resistant to high temperatures and is ideal for use in internal installations and panels.

Standards

Certificates

Technical Specifications

Min. bending radius	If D<8, then 4xD; if D=8, then 6xD
Max. operating temperature	90°
Max. short-circuit temperature	160°
Rated voltage	300/500 V - 450/750 V
Test voltage	2 kV / 2.5 kV
Single cable vertical flame propagation test	EN 60332-1-2
Lead-free	̶P̶b̶

Technical Data

Size and Weights				Electrical Information
Nominal Cross-Section	Approx. Outer Diameter	Approx. Net Weight	Standard Shipment	Conductor DC Resistance at 20 °C (Max.)	Current Carrying Capacity
					In Conduit (A)	In Air (A)
mm²	mm	kg/km	length/m	ohm/km
